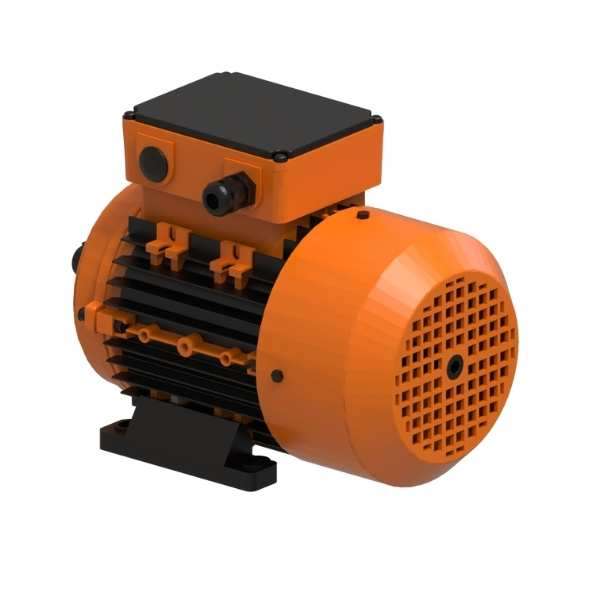

Single Phase Induction Motor

Created for Demo purpose. It’s free to use and edit. By giving credit to bimmodeller.com

If you wanted to Customize further contact for our paid services.

A single-phase induction motor features a single-phase winding on the stator and a cage winding on the rotor. When a one-phase supply is linked to the stator winding, a pulsing magnetic field is generated. In the pulsing field, inertia prevents the rotor from rotating.
