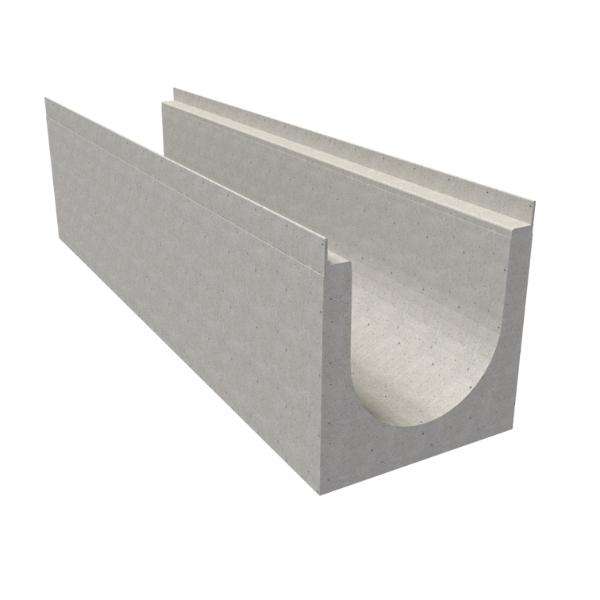

Rain Water Filter Substrate Channel

Created for Demo purpose. It’s free to use and edit. By giving credit to bimmodeller.com

If you wanted to Customize further contact for our paid services.

DRAINFIX CLEAN FSU 300 Type 01 – Middle element, filter substrate channel with the principle of surface filtration, made of fiber-reinforced concrete, nominal diameter 300 mm, load class A 15 to F 900 according to DIN 19580/EN 1433, CE-compliant, with general building authority approval (Zul.-No. Z-84.2-7), with galvanized steel frame and screwless SIDE-LOCK quick-release fastener, 8-point locking per linear meter, including DRAINFIX CLEAN – drainage pipe DN/OD 100 covered with geotextile and connector, LxWxH 1000x390x415 mm,
