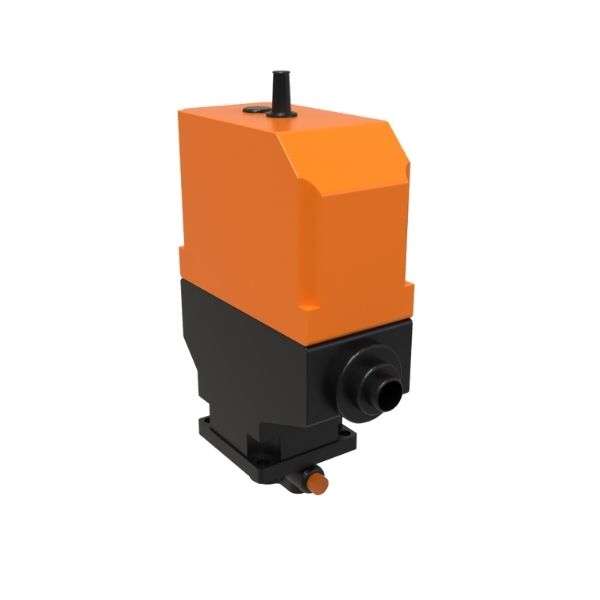

Motorized Diaphragm Valve

Created for Demo purpose. It’s free to use and edit. By giving credit to bimmodeller.com

If you wanted to Customize further contact for our paid services.

Diaphragm valves are made up of a valve body having two or more ports, a flexible diaphragm, and a “weir or saddle” or seat for the diaphragm to close the valve. Depending on the intended application, the valve body could be made of plastic, metal, or another material.
